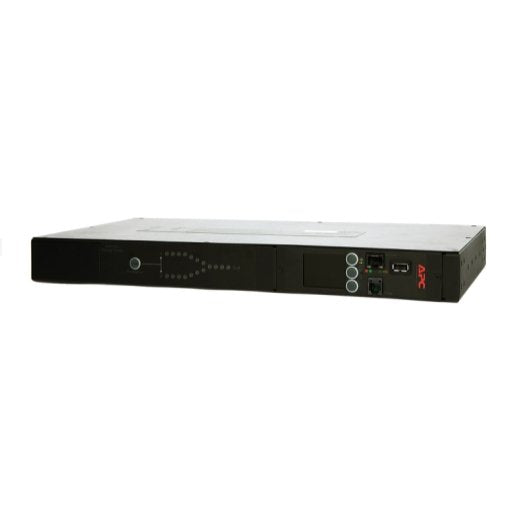

APC Automatic Transfer Switch 10A C14 in C13 out

The APC Rack Automatic Transfer Switch (ATS) is a high availability switch that provides redundant power to connected equipment and has two input power cords, one for each AC source. The output configuration is (12) IEC 60320 C13 The Rack ATS supplies power to the connected load from a primary AC source. If that primary source becomes unavailable, the Rack ATS automatically transfers loads to the secondary source. The transfer time from one source to the other is seamless to the connected equipment, as the switching occurs safely between the two input sources regardless of any phase differences. The units have built-in network connectivity, which allows for remote management through Web, SNMP, SHH, Telnet, or StruxureWare¢‚¬Å¾¢ Data Center Expert. With multiple outlets, several devices can be plugged directly into the Rack ATS without the need for an additional Rack PDU. Current monitoring and alarms help prevent downtime to the equipment by providing aggregate current measurements and warnings when power consumption draws near the maximum rating of the Rack ATS. Built-in network and local interfaces allow for custom configuration settings for added flexibility.

Brand: APC

Colour: Black

Dimensions (WxDxH): 432x236x440mm

Input Connections: IEC 60320 C14

Manufacturer: American Power Conversion

Nominal Input Voltage: 230V

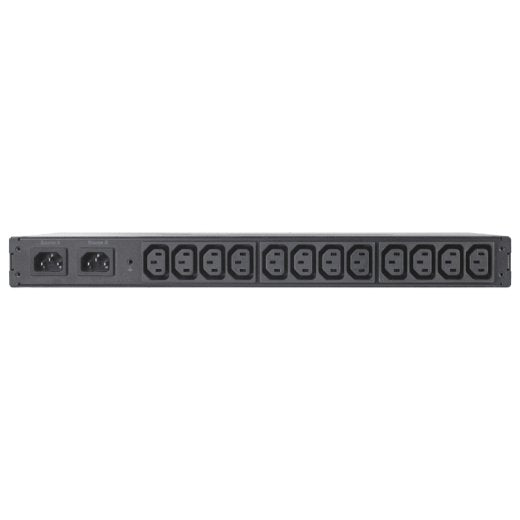

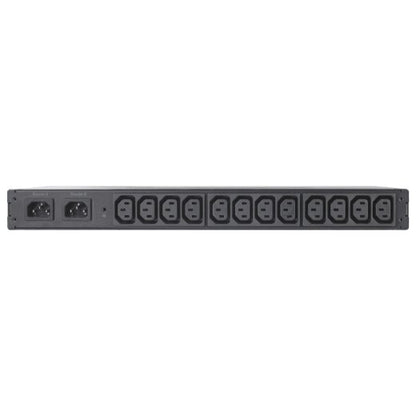

Output Connections: (12) IEC 60320 C13

Output Power Capacity: 230V

Rack Height: 1U

RoHS Compliant: Yes

Type: UPS Power Supplies

Warranty: 2 Year Repair or Replace Warranty

Weight: 3.93kg

• 10 kAIC overcurrent protection
• Command line interface
• Current monitoring
• Cyber security
• LCD display
• Quick transfer rate
• Remote management capabilities
• RoHS
