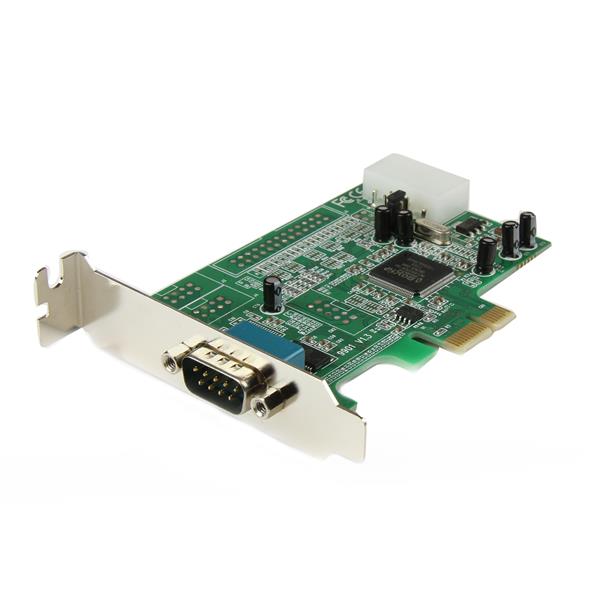

StarTech.com 1 Port PCI Express RS232 Serial Card

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista€ž¢/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

Brand: StarTech.com

Connector Type: 1 - PCI Express x1 Male

Dimensions: 80x105x20mm

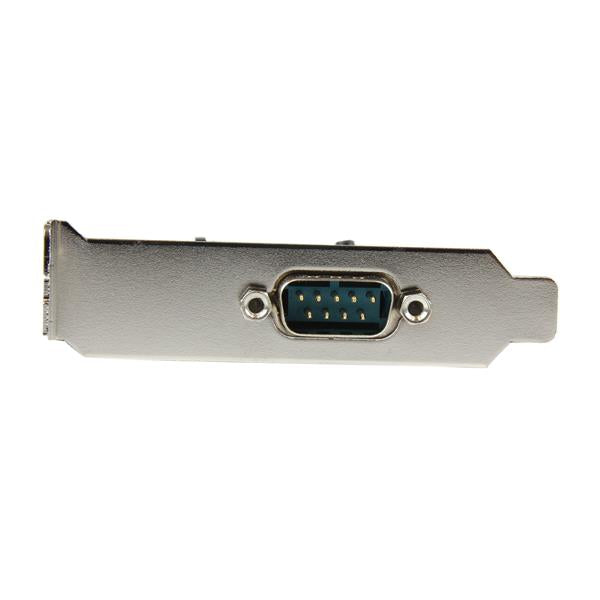

External Ports: 1 - DB-9 (9 pin, D-Sub) Male

Form: Serial Card

Internal Ports: 1 - LP4 (4 pin, Molex-type Large Drive Power) Male

Manufacturer: StarTech.com

Type: PCI Cards

Warranty: 2 Year Warranty

Weight: 44g

• One high speed RS232 serial port with data transfer rate up to 460.8 Kbps

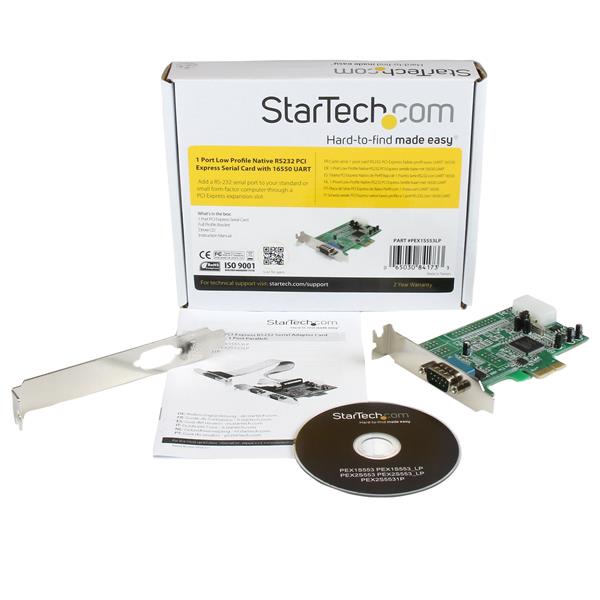

• Ships with half-height/low profile mounting bracket, includes standard bracket
• Selectable power output on pin 9 for the serial port
• Native single-chip, single lane PCI Express
• Single chip design optimises speed and reliability
• Compliant with PCI Express base specifications revision 1.1a
• Automated out-of-band flow control using CTS/RTS and DSR/DTR
• Automated in-band software flow control using programmable Xon/Xoff in both directions
