StarTech.com Mini PCIe Gbit Ethernet Network NIC Card

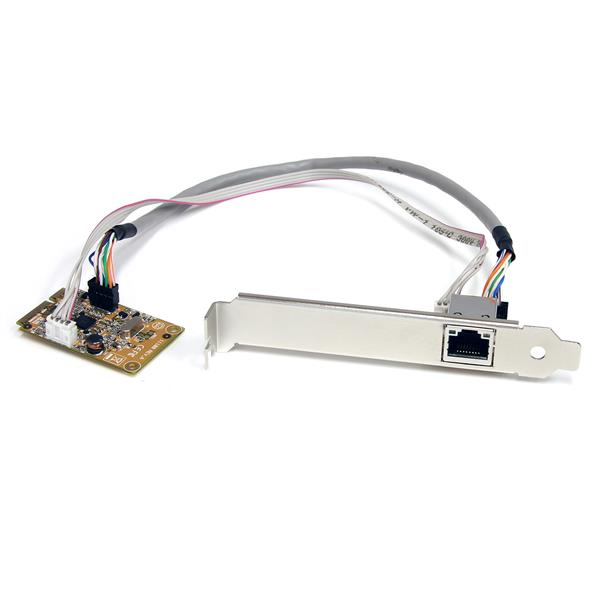

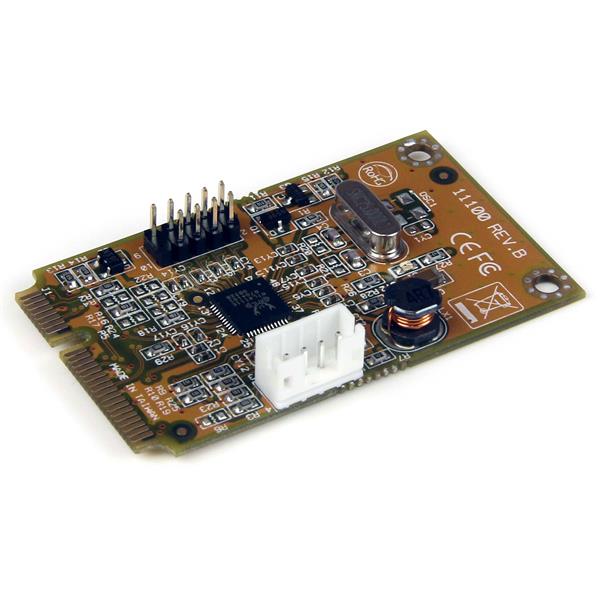

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.

Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Brand: StarTech.com

Capacity: 1 Port

Connector Type: 1 - Mini PCI Express x1 (52 pin) Male

Dimensions: 30x51x8mm

External Ports: 1 - RJ-45 Female

Form: Adapter Card

Manufacturer: StarTech.com

Type: PCI Cards

Warranty: 2 Year Warranty

Weight: 6g

• One 10/100/1000Mbps compatible RJ-45 Ethernet port
• Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections
• Jumbo Frame support up to 9k
• Crossover Detection & Auto-Correction (Auto MDIX)
• IEEE 802.1Q VLAN Tagging support
• Supports Wake-on-LAN (WOL) and Remote Wake-up Support, Pair Swap/Polarity/Skew Correction
• Microsoft® NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support
• Supports Full and Half duplex operating modes
• IEEE 802.3x Full Duplex Flow Control support
• Compliant with PCI Express Mini Card specification 1.1

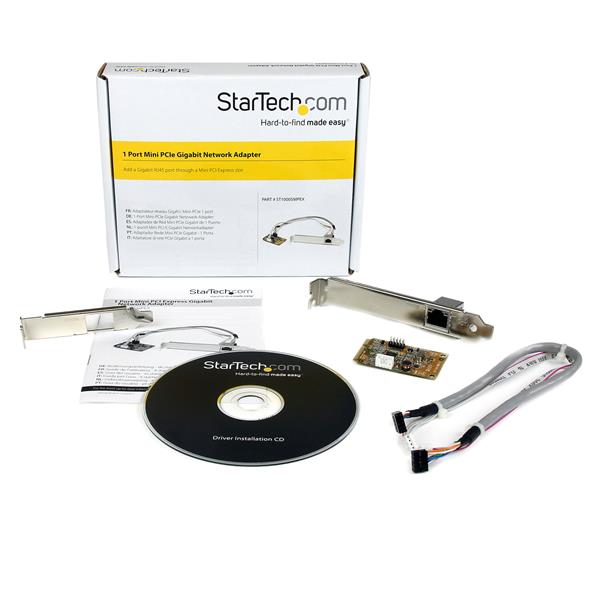

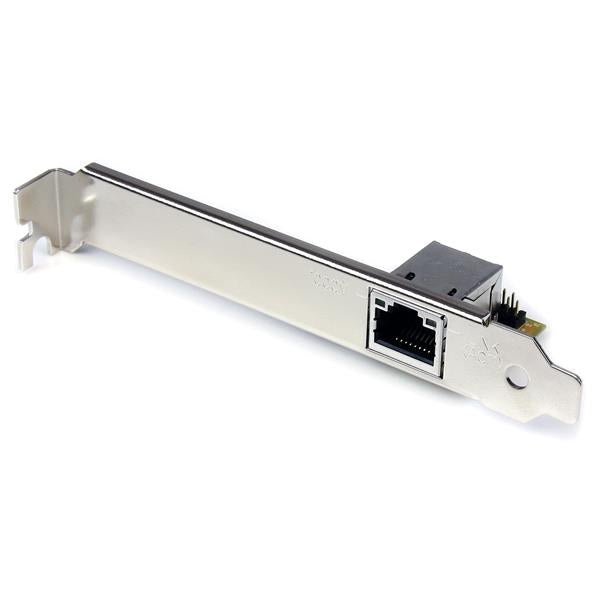

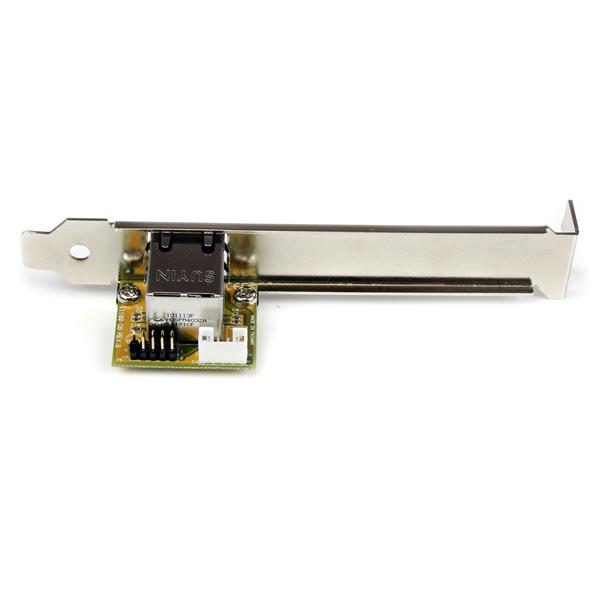

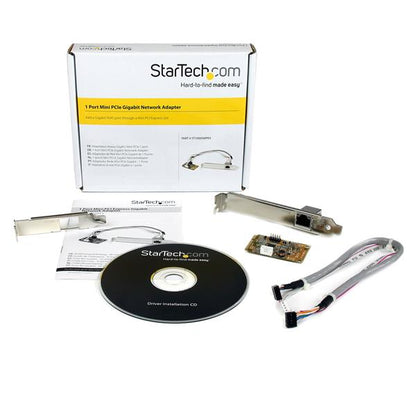

• Includes Full and Low Profile installation brackets
